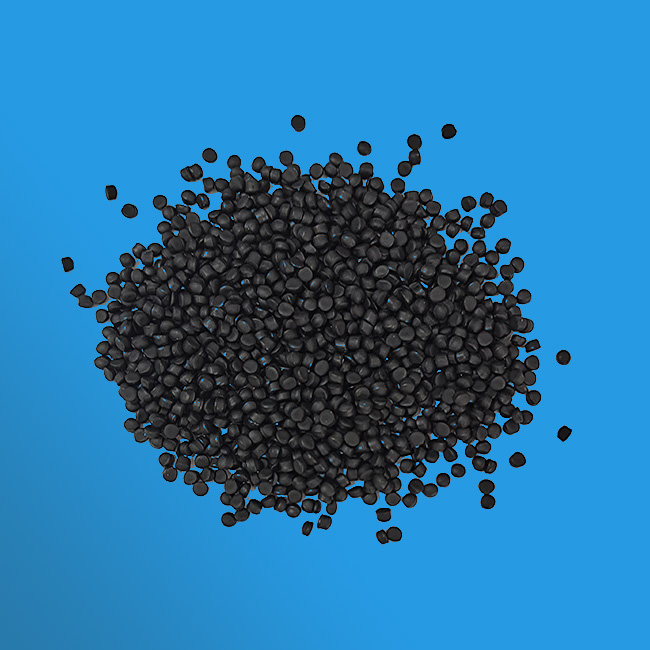

Pacrel® FR5000 Series are environment-friendly halogen-free flame retardant polyolefin based cable materials. They can be widely used in various wire and cable including power cord plug, audio and video cable, headset cable, mobile phone charging cable,etc.
Property | Testing Method | FR5370N-IN | FR5385N-EX | FR5385N-IN | FR5390N-EX | FR5390N-IN |
Hardness,Shore A | ASTM D2240 | 70 | 85 | 85 | 90 | 90 |
Density,g/cm3 | ASTM D792 | 1.10 | 1.05 | 1.11 | 1.08 | 1.03 |
Tensile strength,MPa | ASTM D412 | 8 | 10.1 | 7 | 11.6 | 7.24 |
Elongation at break,% | ASTM D412 | 480 | 280 | 200 | 368 | 270 |
Environmental resistance | ||||||
Thermal shock test | UL1581 121±2℃×4h | No crack | No crack | No crack | No crack | No crack |
Cold bending test | UL1581 -40±2℃×4h | No crack | No crack | No crack | No crack | No crack |
Combustion performance | ||||||
Oxygen index | ASTM D2863 | 29 | 32 | 31 | 33 | 32 |
Fire resistance | UL94，3mm | V0 | V0 | V0 | V0 | VO |
Cable combustion | UL1581 | - | VW-1 | - | VW-1 | - |
Note:The above are typical values, not to be construed as specifications. For more information of products and application, please contact us freely.
