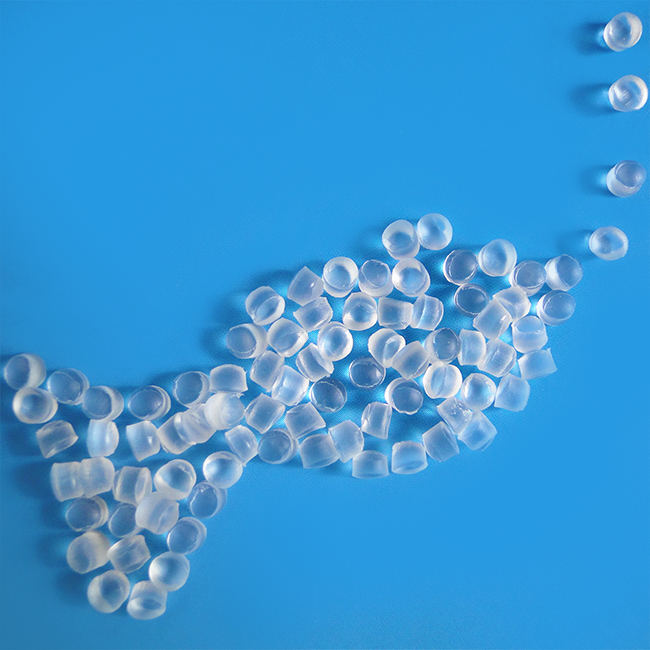

Pacrel® TPE5000 Series are SEBS based thermoplastic elastomer with excellent properties of low density, easy coloring, good elasticity, fine touch, etc. Special grades can be bonded with PA, PC, ABS, etc.
Property |
Testing Method |
Universal Grades |
Special Grades | |||||
5335N | 5355N | 5375N | 5395N | 5365N-NA | 5365N-AC | 5365N-EA | ||
Hardness,Shore A | ASTM D2240 | 35 | 55 | 75 | 95 | 65 | 65 | 65 |
Density,g/cm3 | ASTM D792 | 0.93 | 0.93 | 0.93 | 0.93 | 0.96 | 0.97 | 0.95 |
Tensile strength,MPa | ASTM D412 | 6.9 | 9.0 | 13.6 | 15.8 | 4.3 | 9.2 | 8.8 |
Elongation at break,% | ASTM D412 | 743 | 700 | 750 | 650 | 500 | 800 | 800 |
Tear strength,KN/m | ASTM D624 | 16.0 | 23.0 | 35.0 | 50.0 | 21.8 | 31.0 | 26.0 |
Universal Grades | Transparent, translucent, natural color, matt, bright series, can be used for injection molding, extrusion, rolling,etc | |||||||
Special Grades | NA -bond with PA, AC- bond with ABS/PC, EA- high Resilience |
Note:The above are typical values, not to be construed as specifications. For more information of products and application, please contact us freely.
